- GAS SERVICE RELIEF VALVES (LEAK-TIGHT FOR SERVICE TO 30,000 PSI)

Superpressure

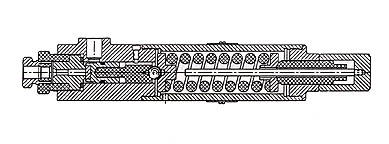

GAS SERVICE RELIEF VALVES





Suitable for any gas except air or oxygen.
All materials in contact with the gas being handled are stainless steel or acetyl resin. The removable valve seat is made of acetal resin (not compatible with air or oxygen) to provide leak-free seating.


If a specific set pressure is desired this should be indicated when ordering, otherwise the valve will be furnished preset at approximately the mid-point of the adjustable range.

These valves have openings for connection to 9/16 inch o. d.

Superpressure tubing

(9/16 HP) and are supplied with one tubing connector-gland nut and sleeve of 416 stainless steel (Catalog No. 45-11360); exhaust is through a ½ inch NPT discharge/ Adapters for connecting these valves to ¼ or 3/8 o. d. tubing will be supplied at extra cost when specified by the customer. Approximate weight is 15 pounds each.

The valve is 3 ¼ diameter x 15 ½ inch overall length.


ORDERING INFORMATION



CATALOG NUMBER FOR 9/16 IN. 44-19562 44-19564
ADJUSTABLE RANGE (psi) 1,000-20,000 15,000-30,000
PORT DIAMETER (IN.) 5/16 1/8
REPLACEMENT VALVE SEAT 44-19581 44-19585
FLOATING VALVE DISC 44-19573 44-19573

SPECIFICATIONS AND ORDER INFORMATION

Catalog Number Product Name Product Description Add To Cart
44-195621K - 20K Gas Service Relief ValveLeak Tight Service to 30,000 PSI  Add To Cart
44-1956415K - 30K Gas Service Relief ValveLeak Tight Service to 30,000 PSI  Add To Cart
44-19573Gas Service Floating Valve DiscLeak Tight Service to 30,000 PSI  Add To Cart
44-195811K - 20K Gas Service Replacement Valve SeatLeak Tight Service to 30,000 PSI  Add To Cart
44-1958515K - 30K Gas Service Replacement Valve SeatLeak Tight Service to 30,000 PSI  Add To Cart
